Rotodraper Pivot Arm

Browse

Item #: 16-100006A

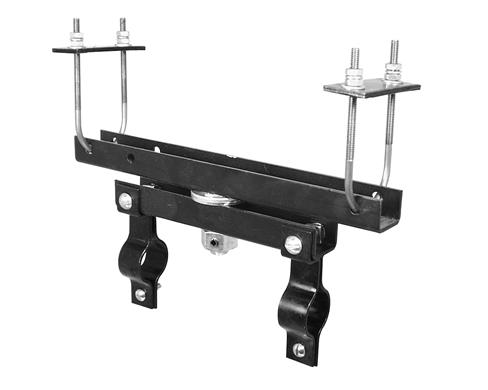

Rotodraper Pivot Arm - Model 06A

Rotodraper® pivot devices are used for changing the position of curtains on tormentors, side legs, back-drops and cycloramas. The effect is easily accomplished either by turning the curtain itself or by fastening a towline to the curtain pipe and pulling the tow line until the curtain is in the desired position. The pivot device is unique because no implement is required to secure the curtain to its proper position. The Rotodraper® is simply installed and easily manipulated to any angle desired including a full 360° turn.

Model 6-A, includes an index plate and spring-loaded roller latch which secures the device at 15 degree intervals and helps to prevent accidental rotation.

Clamps (included) that hold the curtain pipe (not included) are for 1” ID pipe. Other sizes available upon request at time of order.

List Price: $0.00
