Item #:
36-930001

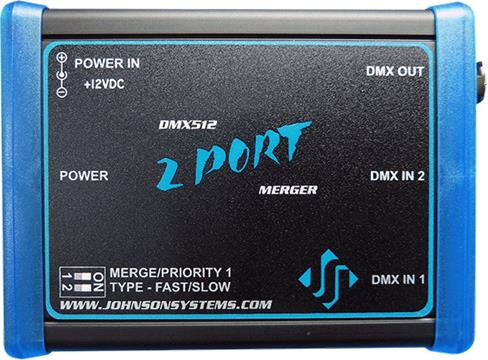

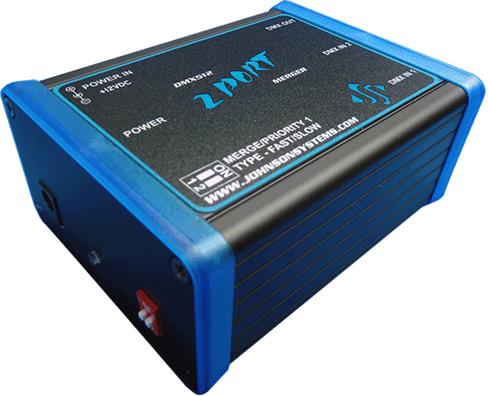

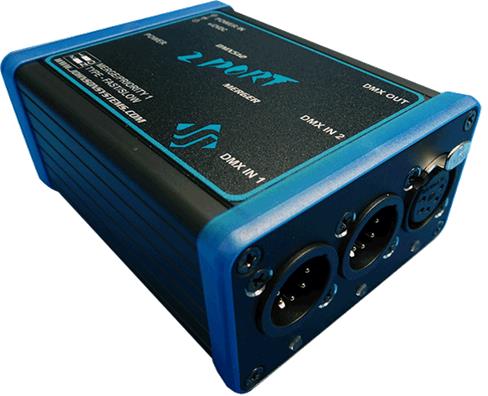

JSI 2-Port DMX Merger/Manager 2-in/1-out Portable
JSI's DMX 2-PORT MERGERS combine two DMX512 data lines into one DMX512 universe providing cost-effective DMX input expansion for temporary and hardwired installations. Input DMX data streams can be combined in a "Highest Take Precedence" (HTP) or selected as "Priority" for backup source or automatic lockout applications. Multiple units can be cascaded together for larger installations.
Available in a choice of portable small enclosure or DIN rail for cabinet mounting, these mergers represent the highest quality for the money available.
-
Two opto-isolated DMX512 inputs, one opto-isolated DMX512 output.
-
All inputs and outputs employ fast acting, "self-healing" fuse protection.
-
Inputs can be selected for "Priority" or "Merge" operation.
-
Selectable speed choice of "Fast" or "Slow" DMX.
-
Power and data receive LED indicators.
-
Unique power saving standby (idle) mode reduces power consumption to less than 1 Watt, a "green" power management product.
-
Up to 10 year product warranty available.
Product Documentation:
