Item #:
39-A1002

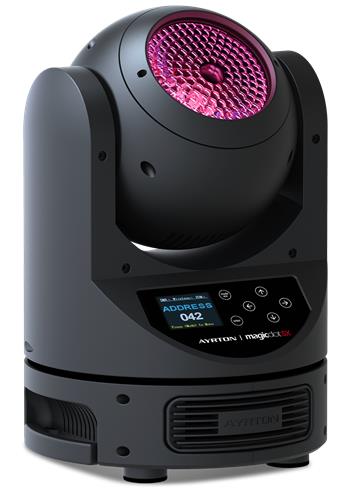

Ayrton MagicDot-SX
MAGICDOT™SX is an optically evolved, multipurpose, variant of MAGICDOT™R, with the same form factor, dimensions and features, including ultra-rapid beam movement and continuous, unlimited, rotation on pan and tilt. The compact footprint allows multiple MAGICDOT™SX luminaires to be installed with a minimum amount of space between them (patent pending).
This new luminaire replaces the 4.5° fixed-focus optics with a revolutionary new 8:1 optical zoom that has a fixed transmitting lens, no visible moving parts and a incredible zoom range of 5° to 40° (patent pending).
The short stroke of the zoom system permits MAGICDOT™SX to switch from intense Beam mode to sweeping Wash mode virtually instantaneously.
MAGICDOT™SX delivers up to 75% optical efficiency in a tight beam, when the 94 mm-diameter collimator is positioned close to the transmitting lens. This ensures great compatibility and graphical interactivity with MAGICDOT™R units. In addition to DMX-RDM control, MAGICDOT™SX can be controlled via wireless CRMX TiMo RDM from LumenRadio™. MAGICDOT™SX is a versatile tool that meets a vast array of needs both in stage and architectural applications.
