Item #:
48-SC0020

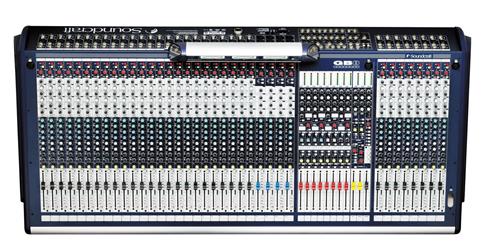

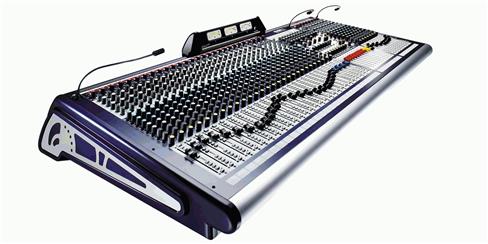

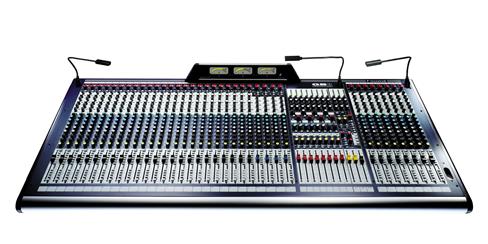

Soundcraft GB8-24 Mixing Console

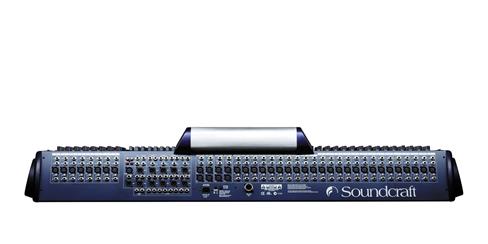

The G8 is designed for installations such as churches and performance venues, or for small touring sound systems. The dual-mode topology implemented to such success on the MH3 and MH4 desks allows the GB8 to be used on FOH or monitor duties, with fader control of group or aux outputs. Additional features over the GB4 includes a 1kHz oscillator and a meter bridge with three led meters that very closely emulate the ballistics of VU meters. Four mute groups allos several channels to be muted simultaneously, while another unique facility is the limiter on both the Record and Alternate stereo outputs that makes it easier to create a stereo recording of the mix. The console alse features an output matrix with eleven feeds to four outputs, being fed from the group busses and main L, R, and C (mono) outputs. Although largely conventional in layout, the GB8 does have some unique mechanical features. The rugged steel chasis has a sloping rear connector panel so that is is easier to configure from the front of the desk, while the integral power supply has a link option for an external back-up PSU.
