Item #: 50-JB00012

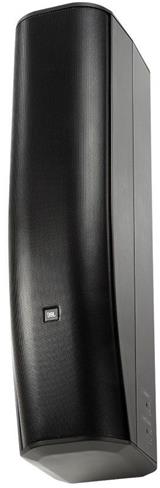

JBL CBT 70J-1 Line Array Column Speaker

The JBL CBT 70J-1 represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

  • Asymmetrical vertical coverage sends more sound toward far area of room to make front-toback sound levels more consistent.

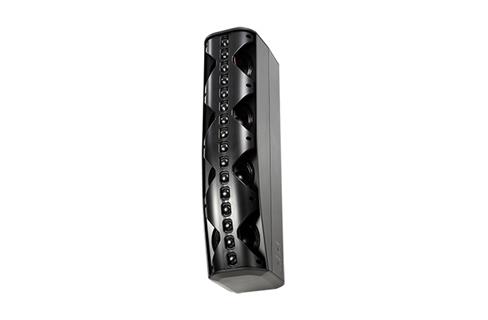

  • Components: Sixteen 25 mm (1 in) soft dome tweeters and four 125 mm (5 in) high-power LF drivers,
    arranged coaxially.
  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.

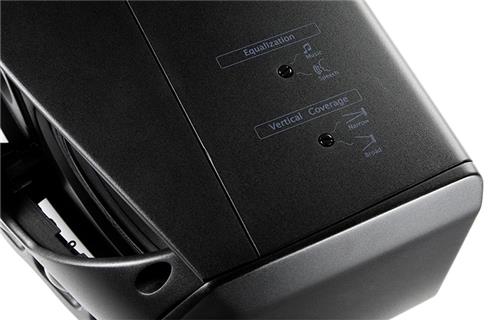

  • Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for
    long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Swivel (pan) / tilt wall bracket included.

For complete specs, please see the "Datasheet" link in the Product Documentation section below.

Warning Triangle WARNING For California Residents - Prop 65

List Price: $0.00


Product Documentation:

  Title File Type Size
Datasheet - JBL CBT 70J-1 Line Array.pdf .pdf 2,272,744 bytes
