Item #:
36-690005

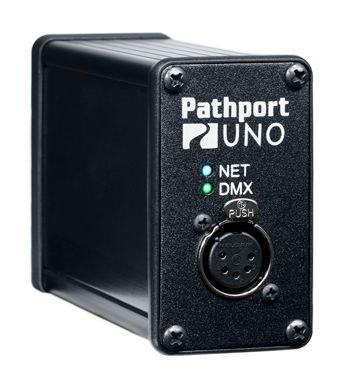

Pathport 1-Port Gateway Truss Mt XLR5F
Pathport® Portable UNO™ is a single port DMX gateway, with full support for Pathport DMX management and distribution features.
Features:
-
Single DMX512 port
-
DMX routing on a universe or channel-by-channel basis
-
Multiple source merging or prioritizing using powerful softpatch engine
-
DMX output speed and signal loss behavior user-set
-
LED indicators for network status and DMX status
-
Power-over-Ethernet (PoE) or auxiliary 24VDC power supply (by others)
-
2.5mm DC input port included
-
E1.20 RDM compliant as proxy device
-
Manage up to 256 RDM responders per port
-
Ships with optional hanging bracket
-
Discreet compact design
-
Supports the following Ethernet protocols:
-
E1.31 Streaming ACN (sACN)
-
Strand Shownet
-
Pathport Protocol
-
Art-Net
-
ETC Net2 (receive only)
