Pathport 4-Port Gateway Rack Mt Rear RJ45

Browse

Item #: 36-690010

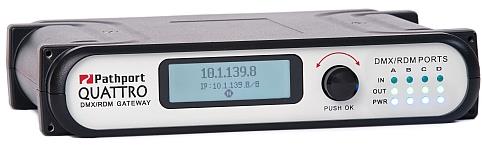

Power-over-Ethernet operation makes the Pathport Quattro ideal for truss-mounted locations, while silent, fanless operation allows it to be placed immediately next to the lighting console, no matter where the console must be located. The encoder knob/LCD screen interface provides front panel access to all common configuration parameters. Most user won’t need a computer for configuration.

Features:

Four DMX512 ports, individually configurable
10/100Mb Ethernet port
Front panel UI supports configuration of IP settings, port direction, basic patching and more
Route DMX on either a universe or channel-by-channel basis
Map up to eight sources to each output channel, with merge and/or priority options user-set for each source
Acts as E1.20 RDM proxy controller, when used with freely downloadable Pathport Manager software
DMX output speed and signal loss behavior user-selectable
Compact size - two gateways may fit side-by-side in 1RU of space
Rackmount ears included
Operates on Poe (Power over Ethernet) or auxiliary 24VDC power supply (accessory)
Supports the following Ethernet protocols
- E1.31 streaming ACN (sACN)
- Art-Net
- Pathport Protocol
- Shownet
